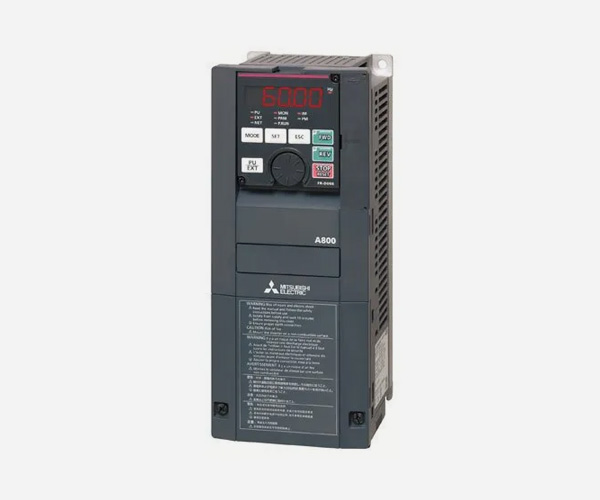

High Performance And High Quality New Inverter Of The Highest Level.

The FR-A Series Offer The Best Drive Performance In The FR Series.The Enhanced Real Sensorless Vector Control And Vector Control Serve The Needs Of All Machinery Types.

Pursuing Optimum Functions To Meet Our Customers' Needs

A New Lineup Of Dedicated Inverters For Specialized Fields Are Born!
Plus! The Optimum Functions For Each Dedicated Field Are Added To The Already High Performance And High Functionality FR-A800 Series Inverter.

In Roll To Roll Applications, Control Is Necessary For Machining Of Elongated Products Such As Paper, Film, And Thread. Processing Types Include Printing, Slitting, Coating, And Twisting. High Productivity Can Be Achieved By Stable Tension Control.

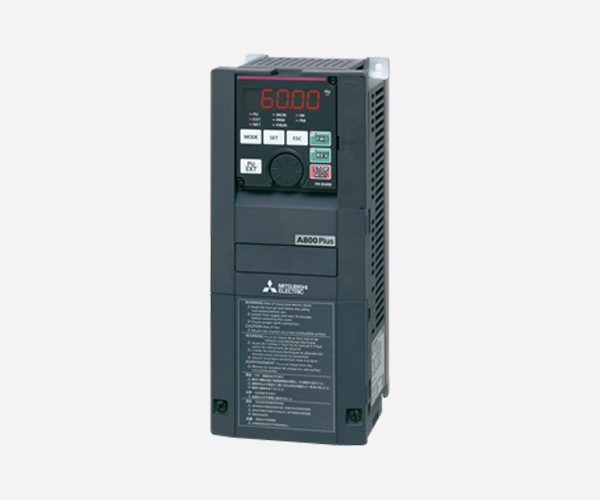

The FR-A800-R2R Inverter Can Be Used In A Wide Variety Of Systems With Various Dedicated Functions.

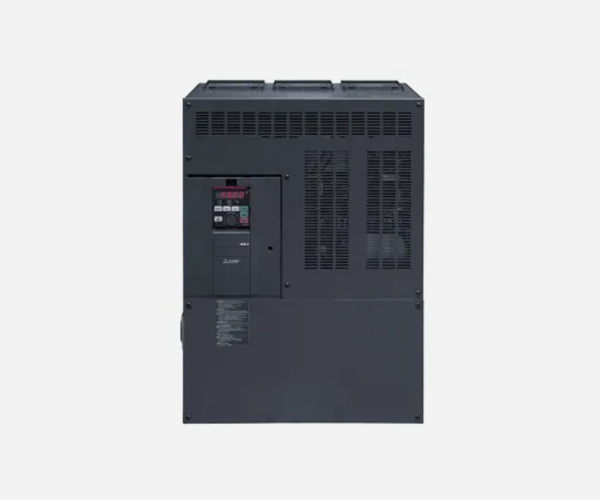

Release Of The New Liquid Cooled Type Inverter, FR-A800-LC

Coolant Is Used For Cooling The Inside Of The Inverter. Liquid Cooling Enables New Applications In The Environments Where Heat Is Difficult To Be Dissipated.

Features

Effective Solution For Downsizing Of The Enclosure

A Smaller Enclosure Can Be Used Since The Quantity Of The Heat Dissipated In The Enclosure Is Reduced.

Dedicated Monitoring Functions

A Sensor (flow Switch) Is Attached At The Inlet Of Coolant To Send A Signal To The Inverter. When The Coolant Flow Rate Decreases, A Warning Is Output, Enabling Quick, Direct Detection Of System Faults.

Lineup Of 690 V Class Inverters

The Power Supply Voltage Of 690 VAC Is Supported. A Wider Range Of Power Supply Voltage Is Covered.

The Following Functions (protocols) Are Available Via General-purpose Ethernet Communication.

CC-Link IE Field Network Basic
MELSOFT / FA Product Connection
SLMP*1
MODBUS/TCP

*1 - SLMP Is A Common Protocol For Seamless Communication Between Applications. Users Do Not Have To Be Concerned With Network Layers Or Boundaries.
*2 - MELSOFT / FA Product Connection, SLMP, Etc.

Remote Monitoring

The FR-A800-E-LC Inverter Can Be Remotely Operated Via Ethernet Using FR Configurator2, Which Will Be Upgraded Soon. Parameter Setting, Monitoring, And Maintenance (for Example, Parts Lifespan Diagnosis) Of The FR-A800-E-LC Inverter Is Possible Through Network. Adjustment Time And Downtime Of The Inverter Can Be Reduced.

Release Of The New Inverter For Logistics And Transportation
The FR-A800-AWH Inverters Are Ideal For Logistics And Transportation, Supporting Dual Feedback Control,
full-closed Control, And Nine Types Of Distance Sensors.

We Provide Solutions To Your Energy Saving Needs, Not To Mention The Leading Drive Performance Such As Its Energy Saving Functions, Low Speed And High Torque Driving, The Selectable Multiple Rating Between Two Types, LD (light Duty) And SLD (superlight Duty) Depending On The Load Of The Fan/pump, And Equipping The 24 VDC Control Power Input As Standard

Compact Inverter For Fans And Pumps
Both The General-purpose Motor And The IPM Motor Can Be Operated. The General-purpose Motor Driving Setting Can Be Switched To IPM Driving Setting By Only One Setting.
When The Budget Is Limited, Equipment Investment Can Be Made In Several Stages. Use This Inverter With A General-purpose Motor At First, Then With An IPM Motor.

Useful Functions For Each Of The Design, Operation, And Maintenance Processes Of Systems

FR-E800 Inverters Have Various Functions To Attract More Customers By Offering Safe And Reliable Operation For A Long Time. This Is The Time To Start Innovation In The Fields Of Manufacturing.

Achieving The Top Level Of Driving Performance In Compact Body, The Inverter Became More Powerful.
Advanced Magnetic Flux Vector Control Enables Accurate Start-ups Of General-purpose Industrial Machines

Improved Reliability And Easy Maintenance.
Spring Clamp Terminals Provide High Reliability And Easy Wiring.
The Inverter With The Safety Stop Function Can Comply With The Safety Standards Without Incurring Too Much Expenses.
