Specifications

- 4.3”(480*272) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 512 MB RAM
- 256 MB ROM
- Built-in Ethernet
- 1 COM port / 1 extension COM port
- Multilingual input
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >10,000K times

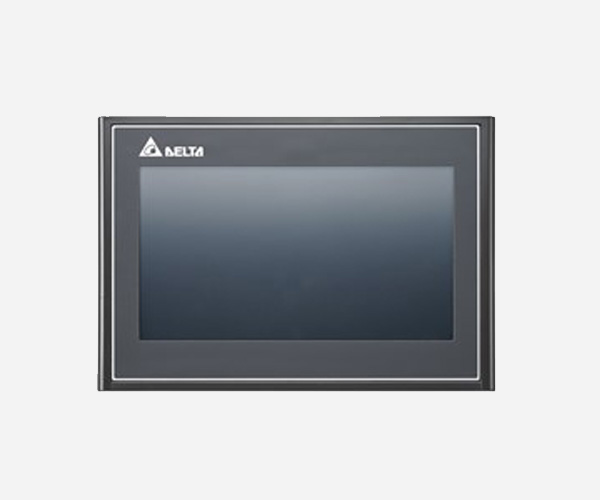

Specifications

- 7” (800 * 480) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 512 MB RAM
- 256 MB ROM
- Built-in Ethernet
- 2 sets of COM ports / 1 extension COM port
- Multilingual input
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >10,000K times

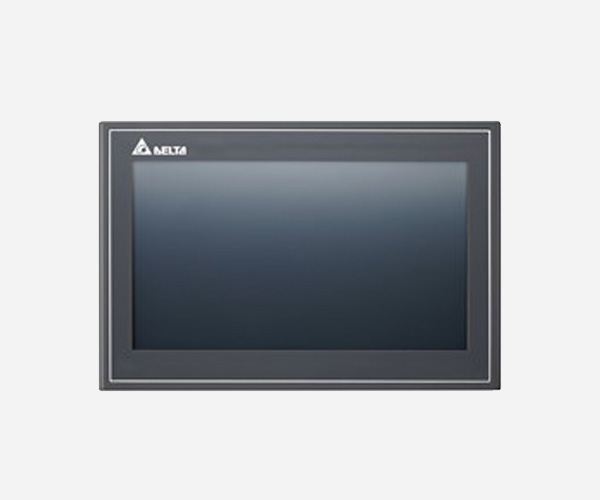

Specifications

- 10.1”(1024*600) 65536 Colors TFT
- Cortex-A8 800MHz CPU
- 512 MB RAM
- 256 MB ROM
- Built-in Ethernet
- 2 sets of COM ports / 1 extension COM port
- Multilingual input
- USB Host
- USB Client
- Supports SD card
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >10,000K times

Specifications

- 7”(800*480) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 256 MB RAM
- 256 MB ROM
- Built-in Ethernet
- 2 sets of COM ports / 1 extension COM port
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >10,000K times

Specifications

- 7”(800*600) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 256 MB RAM
- 256 MB ROM
- Built-in Ethernet
- 2 sets of COM ports / 1 extension COM port
- USB Host
- USB Client
- Supports SD card
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >10,000K times

Specifications

- 7”(800*480) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 256 MB RAM
- 256 MB ROM
- 2 sets of COM ports / 1 extension COM port
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >10,000K times

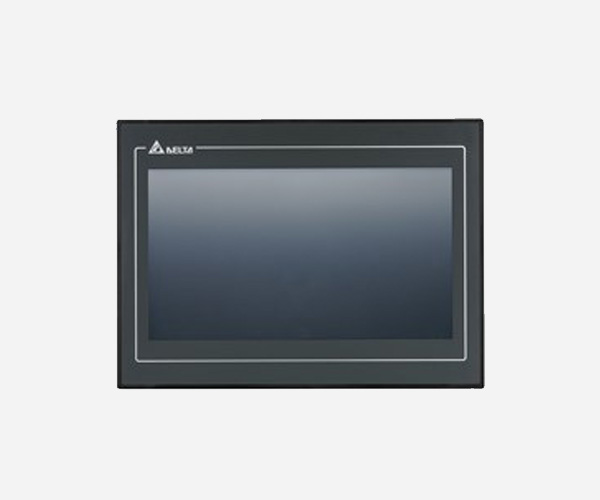

Specifications

- 10.1”(1024*600) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 256 MB RAM
- 256 MB ROM
- 2 sets of COM ports / 1 extension COM port
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >1,000K times

Specifications

- 4.3”(480*272) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 256 MB RAM
- 256 MB ROM
- 1 COM port / 1 extension COM port
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >1,000K times

Specifications

- 7”(800*480) 65,536 Colors TFT
- Cortex-A8 800MHz CPU
- 256 MB RAM
- 256 MB ROM
- 1 COM port / 1 extension COM port
- USB Host
- USB Client
- CE / UL certified
- Operation Temperature: 0℃ ~ 50℃
- Storage Temperature: -20℃ ~ 60℃
- Pressing times: >1,000K times

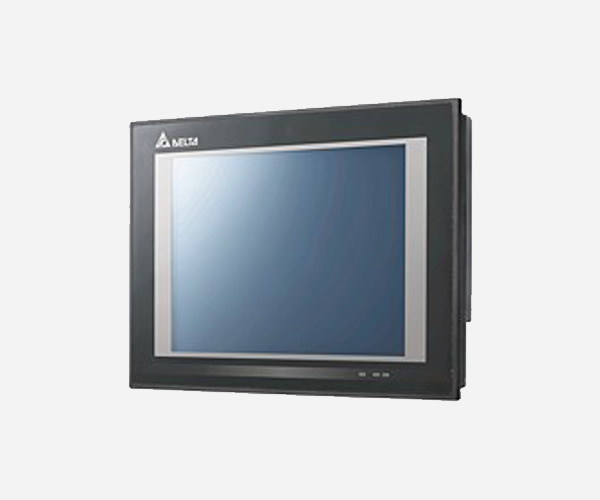

Specifications

- 10.4" (800 x 600 pixels) TFT LCD 65536 colors
- 2 sets of COM ports, support RS232 / RS422 / RS485
- Supports USB Host, direct connection to USB disk, printer and mouse
- Supports SD card
- Supports 2 Ethernet ports
- Supports audio output (MP3, Wav files)
- Supports video format: MPEG1, MPEG2, WMV
- Touch screen complies with IP65
- Supports horizontal / vertical display
- PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

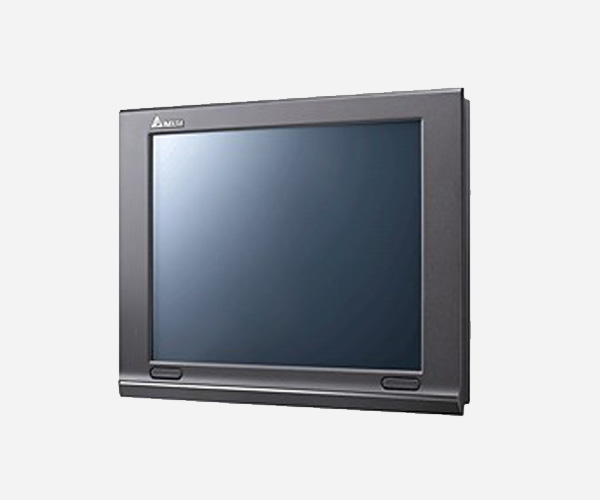

Specifications

- 12" (1024 x 768 pixels) TFT LCD 65536 colors
- CE-certified aluminum enclosure
- 2 sets of COM ports, support RS232 / RS422 / RS485
- Supports USB Host, direct connection to USB disk, printer and mouse
- Supports SD card
- Supports 2 Ethernet ports
- Supports audio output (MP3, Wav files)
- Supports video format: MPEG1, MPEG2, WMV
- Touch screen complies with IP65
- Supports horizontal / vertical display
- PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

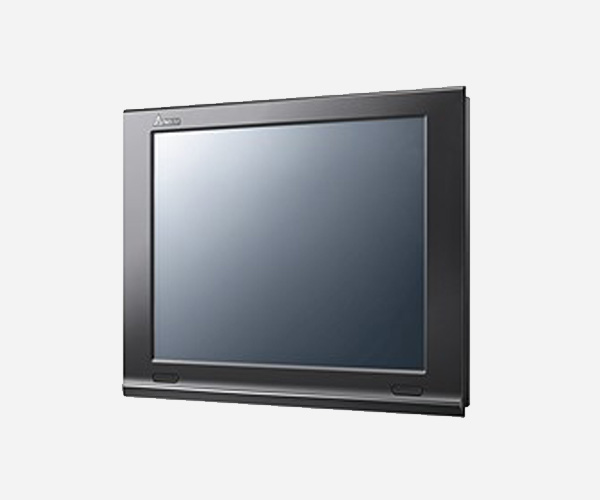

Specifications

- 15" (1024 x 768 pixels) TFT LCD 65536 colors
- CE-certified aluminum enclosure
- 2 sets of COM ports, support RS232 / RS422 / RS485
- Supports USB Host, direct connection to USB disk, printer and mouse
- Supports SD card
- Supports 2 Ethernet ports
- Supports audio output (MP3, Wav files)
- Supports video format: MPEG1, MPEG2, WMV
- Touch screen complies with IP65
- Supports horizontal / vertical display
- PC editing software, DOPSoft is compatible with operating systems: Windows XP, Windows Vista, Windows 7

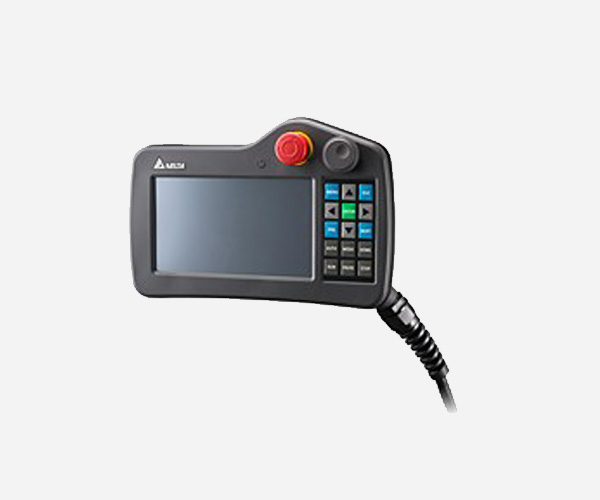

Specifications

- 7” widescreen 65536 colors display
- Built-in emergency stop switch
- Built-in enable switch (rear side)
- Serial communication models provide one COM port, and support RS-485 / RS-422
- Ethernet communication models: support one Ethernet port
- Optional MPG (Manual Pulse Generator)
- Compact and lightweight 750g design
- Integrated style cables available (5 m / 10 m)

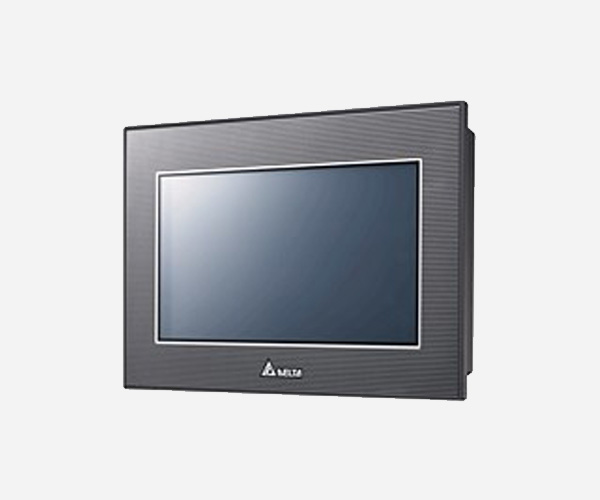

The TP70P Series adopts a 65535 colors LCD touchscreen, supports Delta's controllers, and can be connected to all series of Delta's AC servo drives, AC motor drives, and temperature controllers. With four models providing different I/O configurations and supporting various output types, the TP70P Series' high flexibility saves wiring cost and offers the best HMI and I/O control solution.

Specifications

- Touchscreen LCD with 65535 colors
- Provides various kinds of graphical objects, including X-Y curves, circular meters, bar charts, sliders, and historical/real-time alarms
- Supports PLC Link
- Supports Delta's controllers, and can be connected to all series of Delta's AC servo drives, AC motor drives, and temperature controllers
- Offers two serial communication ports : One supports PLC communication, and the other supports Text Panel communication
- Built-in USB port to connect with computers. Supports program upload/download and connection monitor with WPLsoft/ISPsoft/TPEditor software
- Provides four models with different I/O configurations that support various output types
