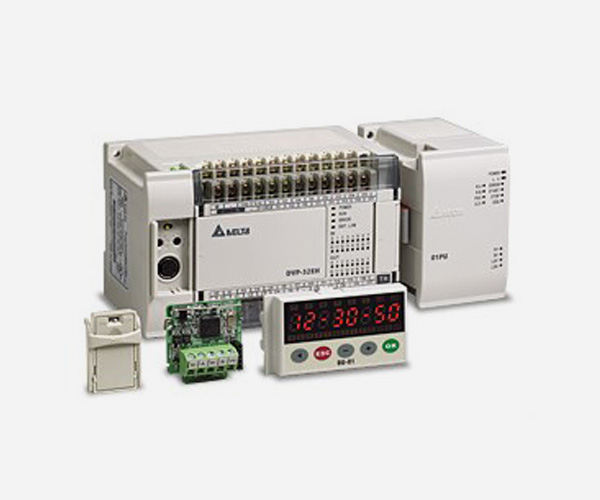

The new generation DVP-EH3 PLC is the high-end model of the Delta DVP-E series.

It provides larger program capacity and data registers for more demanding and complex applications.

Excellent Motion Control

- High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3)
- Supports max. 4 hardware 200kHz high-speed counters
- Increases many motion control instructions to meet the applications that require high-speed and high-precision
- positioning control such as labeling machines, packaging machines and printing machines
- Offers linear / arc interpolation motion control
- Provides up to 16 external interrupt pointers

Complete Program Protection

- Auto backup function to prevent losing programs and data even when the battery runs out
- Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
- Up to 4-level password protection protects your source programs and intellectual property

Outstanding Operation Performance

- CPU + ASIC dual processors support floating point operations.
- The max. execution speed of basic instructions is able to reach 0.24μs.

Flexible Function Extension Modules & Cards

The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.

PLC-Link

C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules.

Brand-New High-Speed Extension Modules

The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.

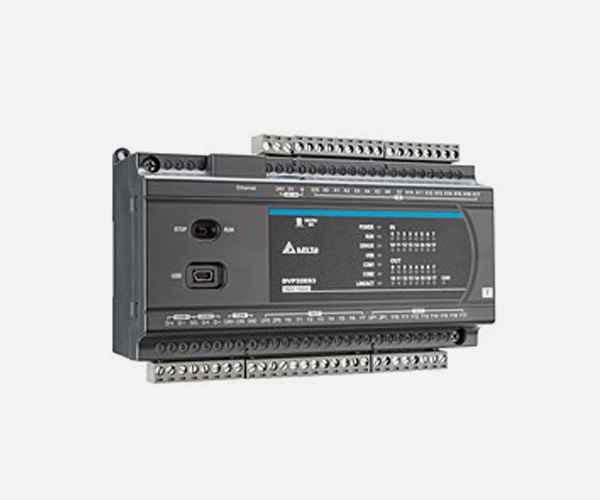

The DVP-ES3 Series is a slim PLC for high-end programmable control and applications. Its CPU is built-in with 4 high-speed counter inputs, up to 4-axis control (pulse), and support for a total of 8-axis (CANopen) position outputs (optional). It provides multiple protocols and robust network functions, and users can rapidly complete integration and connection via user-friendly configuration software.

Specifications

- CPU:
   - 32-bit high-speed processor
   - Built-in I/O points: 32 / 48 / 64 / 80
- Program capacity: 64k steps
- General register: 64k words
- Communication ports: RS-485 * 2, Ethernet * 1, and CANopen DS301 * 1
- Built-in SD interface (Micro SD)
- Max. I/O points: 256 points (256 inputs / 256 outputs)
- 4 high-speed counters: maximum frequency 200 kHz for each counter
- 4-axis (8 points) high-speed position output at 200 kHz
- Supports a total of 8-axis (CANopen) position outputs
- Supports IEC61131-3 programming (LD, ST, SFC and CFC)

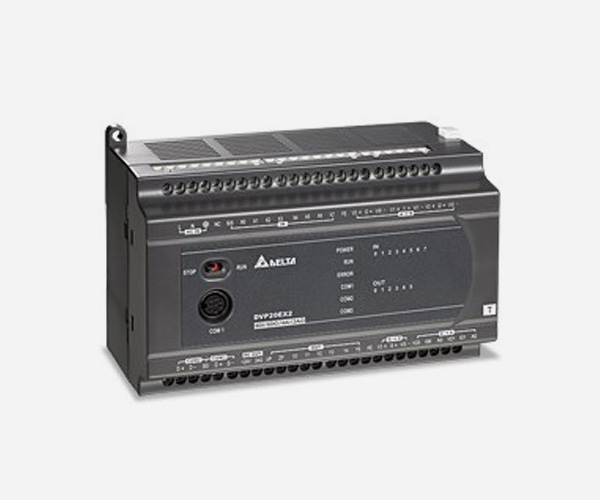

ES2 series is a small PLC for basic sequential control. It is economical, highly efficient and functional.

Specifications

- MPU points: 16 / 20 / 24 / 32 / 40 / 60
- Program capacity: 16k steps
- Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
- Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
- DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution
- Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
- New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
- Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
- Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta's AC motor drives
- Password protection: Password for subroutine, user ID, restriction on trial times
- Highly efficient instruction efficient instruction execution

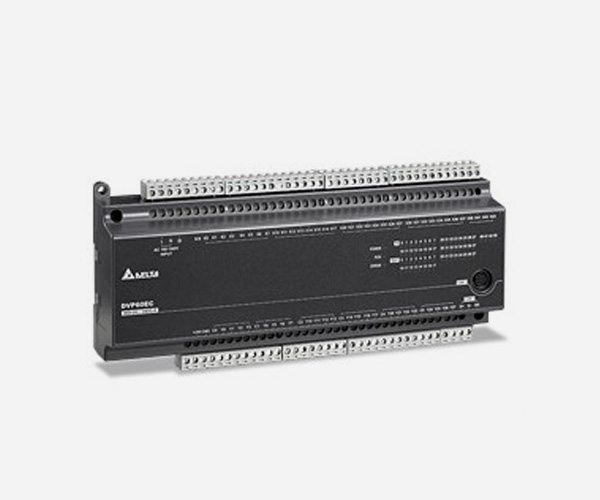

EC3 series is the most economical solution for sequential control and communication monitoring and can operate independently, allowing the user to achieve stand-alone monitor, e.g. monitoring phototransistor coupler, proximity switch, optical sensor, indicator and illumination switch. Through serial ports, EC3 is able to connect to control devices such as PLC, frequency inverter and temperature controller, which can be said to be a programmable application solution that is cost-friendly and highly reliable.

Specifications

- MPU points: 10/ 14 / 16 / 24 / 32 / 60
- Max. I/O points: 60
- Program capacity: 4k steps
- COM ports: Built-in RS-232 and RS-485 ports (available in 16-60 point models); compatible with Modbus ASCII/RTU protocol

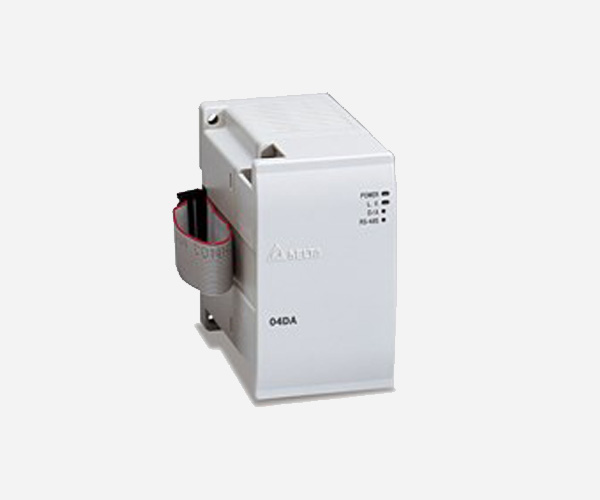

Features & Benefits

Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement/control modules, load cell modules, network modules, remote I/O communication modules

Applications

Remote device monitoring, production line monitoring, printing machine, container filler (recipe application)

Specifications

- Digital modules (output/input/mix): 8,16, 32, 48 I/O
- Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit) / output (12-bit)
- Load cell modules (for EH3-L): Independent dual-channel high speed high accuracy load cell module with 24 bits resolution with 2.5ms response rate
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs Pt100 / Pt1000 / Ni100 / Ni1000 3850 PPM/°C, thermocouple inputs DJ, K, R, S, T, E, N type
- Network modules (for EH3-L): EtherNet, DeviceNet, PROFIBUS-DP, CANopen, RS-485, RS-422, BACnet MS/TP
- Remote I/O communication modules (for EH3-L): DeviceNet, PROFIBUS-DP, MODBUS TCP, EtherNet, RS-485

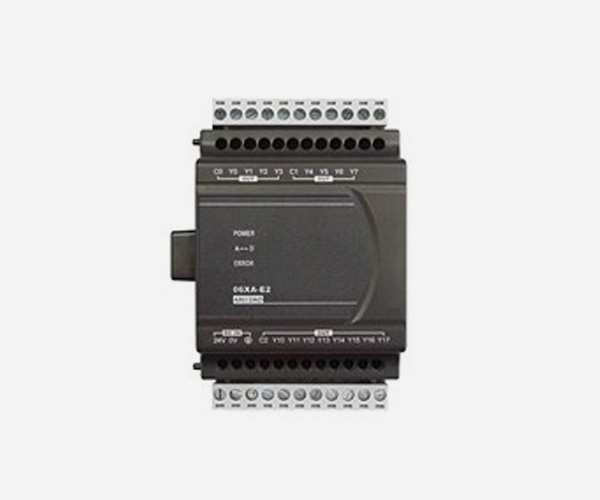

Features & Benefits

Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement modules, resolver modules

Applications

HVAC, printing machine, packaging machine, molding injection machine, inspection system

Specifications

- Digital modules (output/input/mix): 8,16, 32(AC power)
- Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit)
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs Pt100 / Pt1000 / Ni100 / Ni1000, thermocouple inputs J, K, R, S, T, E, N type
- Resolver modules: distance 50M, resolution 12-bits, 500rpm, disconnection detection is supported

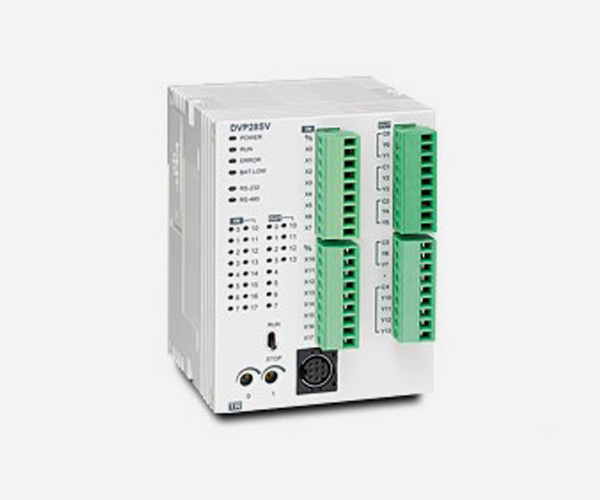

The new generation DVP-SV2 PLC is the high-end model of the Delta DVP-S series. It provides larger program capacities and data registers for more demanding and complex applications.

Specifications

- High-speed pulse output: 4 sets of 200kHz pulse output
- Supports max. 4 hardware 200kHz high-speed counters
- Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning
- Offers linear / arc interpolation motion control
- Provides up to 16 external interrupt pointers

Complete Program Protection

- Auto backup function to prevent losing programs and data even when the battery runs out
- Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
- Up to 4-level password protection protects your source programs and intellectual property

Supports DVP-S series left-side and right-side modules

- Add new ETHRW instruction for Ethernet communication

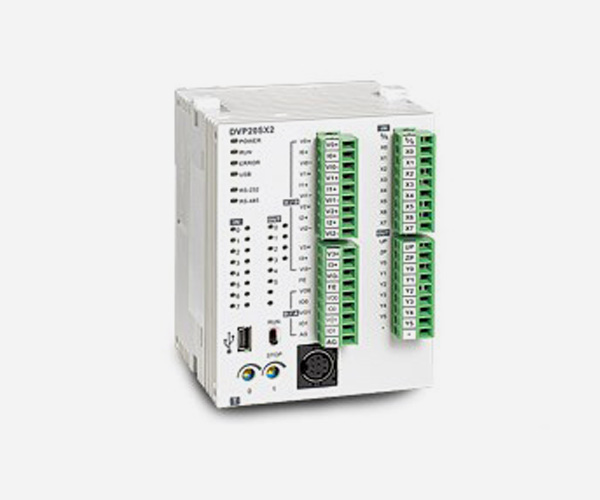

The 2nd generation DVP-SX2 series slim type PLC offers 14 digital points and built-in 12-bit analog I/O points. It is extendable with DVP-S series left-side and right-side extension modules.

Specifications

- MPU points: 20 (8DI/6DO, 4AI/2AO)
- Max. I/O points: 494 (14 + 480)
- Program capacity: 16k steps
- COM port: Built-in RS-232, RS-485 & USB ports, compatible with ASCII/RTU protocol. Can be master or slave.
- High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
- Built-in High-Speed Counters
- Built-in Analog I/O

Applications

Used for PID temperature/humidity control, 2-axis AC motor drive constant speed control, temperature control using a analog signal monitoring of a whole factory. (PLC EASY LINK)

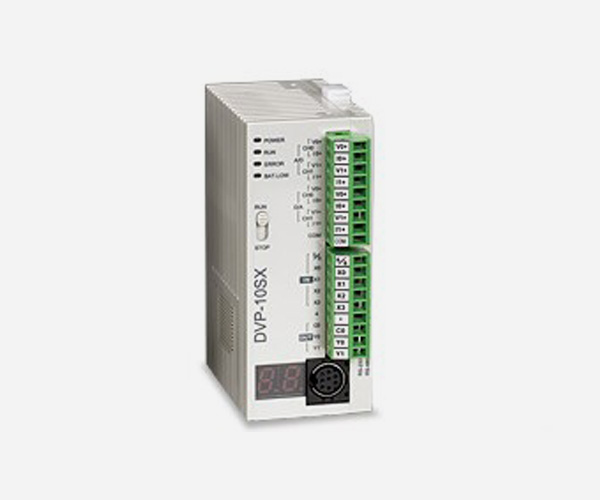

The slim and compact SX series supports digital input/output and is built in with multiple analog I/O channels.

Specifications

- MPU points: 10 (4DI/2DO, 2AI/2AO) - Max. I/O points: 230 - Program capacity: 8K Steps - Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol. - High-speed pulse output: Supports 2-point independent high-speed pulse output (Y0 of up to 50KHz and Y1 of up to 10KHz). - Built-in high-speed counter

Applications

Used for PID temperature/humidity control, 2-axis AC motor drive constant speed control, temperature control using a analog signal monitoring of a whole factory. (PLC EASY LINK)

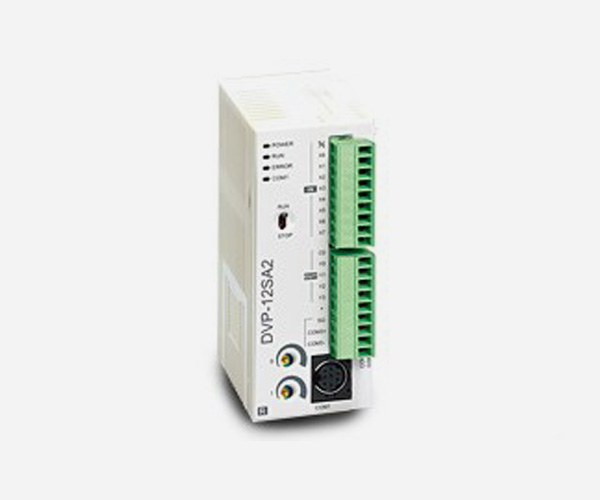

The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.

Specifications

- MPU points: 12 (8DI + 4DO)
- Max. I/O points: 492 (12 + 480)
- Program capacity: 16k steps
- COM port: Built-in RS-232 & 2 RS-485 ports, compatible with Modbus ASCII/RTU protocol.
- Can be master or slave.
- High-Speed Pulse Output: Supports 2 points (Y0, Y2) of 100kHz and 2 points (Y1, Y3) of 10kHz independent high-speed pulse output.
- Extendable to Max. 8 Modules: DVP-SA2 is extendable to analog I/O, temperature measurement, input DIP switch, PROFIBUS/DeviceNet communication modules and single-axis motion control functions.
- Built-in High-Speed Counters

Applications

Printing machine, dying machine, container filler (for prescription’s), work station monitoring in production line (PLC EASY LINK)

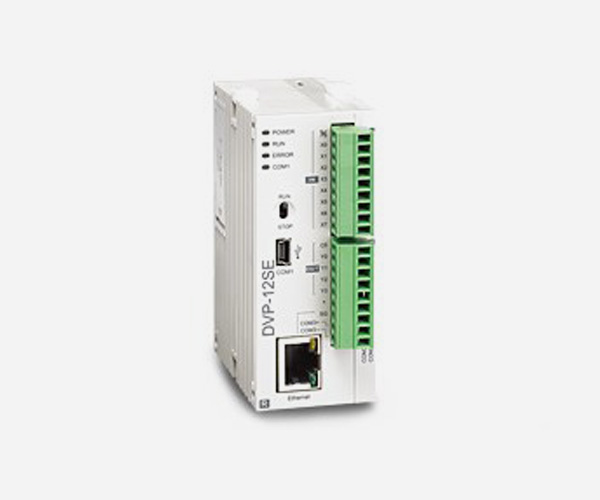

Specifications

- Program capacity: 16k steps
- Data register: 12k words
- Higher execution speed compared to the competition: LD: 0.64μs, MOV: 2μs
- Built-in Ethernet supports MODBUS TCP and Ethernet/IP
- IP Filter function is a firewall that offers the first line of defense and provides protection from malware and network threats
- Supports DVP-S series left-side and right-side modules
- No battery required. Maintenance-free.(Real time clock operates for 15 days after power off)

Features & Benefits

- The most complete network type slim PLC in the industry
- Provides 8 digital inputs and 4 digital outputs
- Built-in mini USB, Ethernet, and 2 RS-485 ports

Applications

Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)

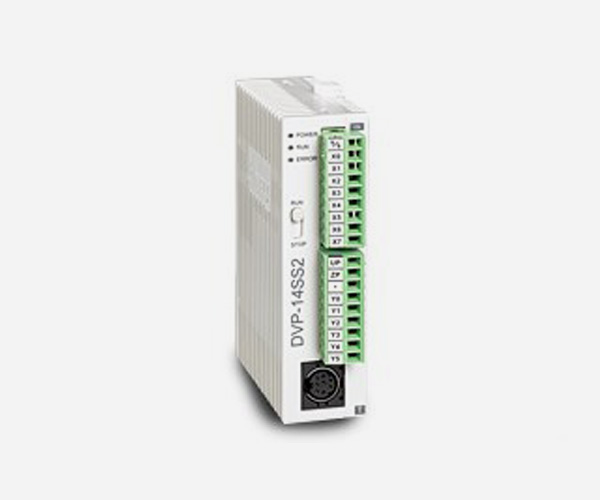

The 2nd generation DVP-SS2 series slim type PLC keeps the basic sequential control functions from the DVP-SS series PLC but with faster execution speed and enhanced real-time monitoring capability.

Specifications

- MPU points: 14 (8DI + 6DO)
- Max. I/O points: 494 (14 + 480)
- Program capacity: 8k steps
- COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.
- High-Speed Pulse Output：Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
- Supports PID Auto-tuning：DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
- Built-in High-Speed Counters

Applications

Spinning machine, conveyer belt (rotation speed control), winding machine (tension control)

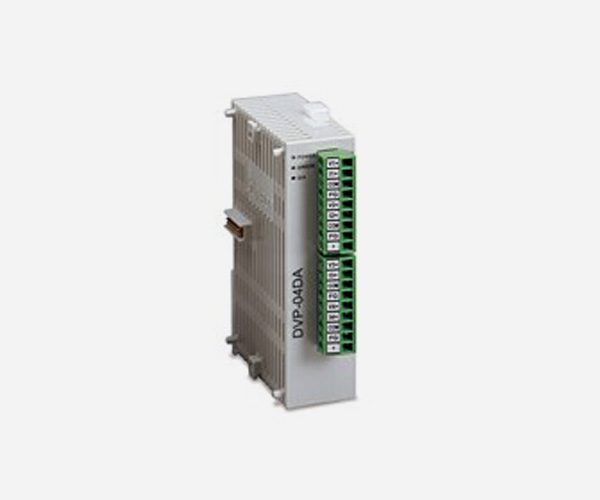

Specifications

- Digital modules (output/input/mix): 8 ,16 , 32, 64 I/O
- Analog modules (output/input/mix): 2 channel, 4 channel, 6 channel inputs (14-bit) / output (12-bit)
- Load cell modules: independent dual-channel high speed high accuracy load cell module with 24 bits resolution with 2.5ms response rate
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy+/-0.6%, resolution 16bits, RTD inputs: Pt100 / Pt1000 3850 PPM/°C (DIN 43760 JIS C1604-1989) / Ni100 / Ni1000 / LG-Ni1000 / Cu100 / Cu50, thermocouple inputs: J, K, R, S, T type
- Network modules: Ethernet, DeviceNet, PROFIBUS-DP,CANopen,RS-485,RS-422,BACnet MS/TP
- Remote I/O communication modules: DeviceNet, PROFIBUS, Ethernet (MODBUS TCP), RS-485 (MODBUS ASCII/RTU)

Features & Benefits

Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement/control modules, load cell modules, network modules, remote I/O communication modules

Applications

Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)

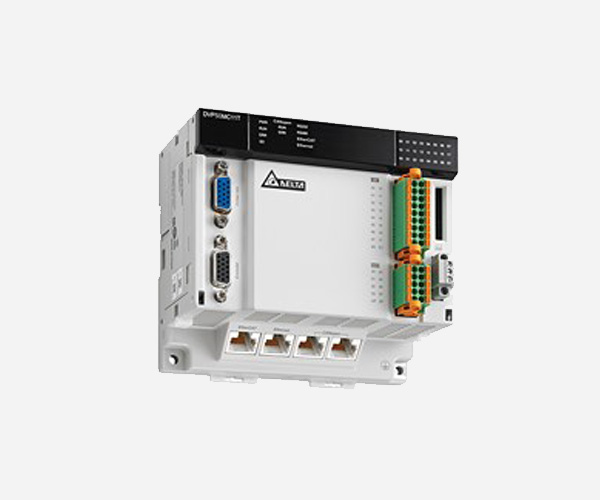

DVP50MC is a type of multi-axis motion controller researched and produced by Delta autonomously on the basis of EtherCAT technology. It supports standard instruction libraries defined by international organizations for motion control and brings great convenience to user to learn and develop projects quickly. Maximum 24 real axes can be controlled by means of EtherCAT port. The single-axis motion instructions including velocity, position, torque and homing instructions as well as multi-axis instructions such as electronic gear, electronic cam, rotary cut and G code are supported.

Specifications

- 1 GHz high-speed floating point operation
- High-precision computing: supports LREAL (Double-precision floating-point format )
- Synchronization time: 24 axes in 1 ms
- Program capacity: 20 MB
- Data capacity: 20 MB
- 1 CANopen port as host or slave station
- 1 EtherCAT port for motion control
- 16 high-speed inputs / 8 high-speed outputs
- 2 incremental encoder interfaces
- 1 SSI absolute encoder interface
- 1 Ethernet port
- 1 SD card slot
- 1 RS-232 port and 1 RS-485 port

Features & Benefits

- Up to 24 real axes control (virtual axis no.: 1 ~ 32, can't be repetitive with real axis no.)
- Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use
- Supports encoder axis and virtual axis
- Single axis motion control instructions: speed, torque, homing, and position setup
- Application instructions: electronic gear, E-Cam, and rotary cut
- G-code/group axes: 8 axes linear / arc / helical interpolation

Applications

High-speed Cutting Machine, Digital Board Cutting Machine, CNC Lathe

DVP15MC11T is a type of multi-axis motion controller researched and produced by Delta autonomously on basis of CANopen field bus. It complies with CANopen DS301 basic communication protocol and DSP402 motion control protocol. In addition, it also supports standard instruction libraries defined by international organizations for motion control. It brings great convenience to user to learn and develop projects quickly. Maximum 24 axes can be controlled by means of Motion port. The single-axis motion instructions including velocity, position, torque and homing instructions as well as multi-axis instructions such as electronic gear, electronic cam, rotary cut and G code are supported.

Specifications

- 1 GHZ high-speed floating point operation
- High-precision computing: supports LREAL (Double-precision floating -point format )
- Synchronization time: 4 axes in 2 ms / 8 axes in 4 ms
- Program capacity: 20 MB
- Data capacity: 20 MB
- 1 CANopen port as host or slave station
- 1 CANopen (Motion) communication port for motion control
- 16 high-speed inputs / 8 high-speed outputs
- 2 incremental encoder interfaces
- 1 SSI absolute encoder interface
- 2 Ethernet ports
- 1 SD card slot
- 1 RS-232 port and 1 RS-485 port

Features & Benefits

- Up to 24 real axes control (virtual axis no.: 1 ~ 32, can't be repetitive with real axis no.)
- Built-in motion control instructions (supporting Jerk and BufferMode) and easy to use
- Supports encoder axis and virtual axis
- Single axis motion control instructions: speed, torque, homing, and position setup
- Application instructions: electronic gear, E-Cam, and rotary cut
- G-code: 8 axes linear / arc / helical interpolation
- Coordinates motion control instruction

Applications

High-speed Cutting Machine, Digital Board Cutting Machine, CNC Lathe

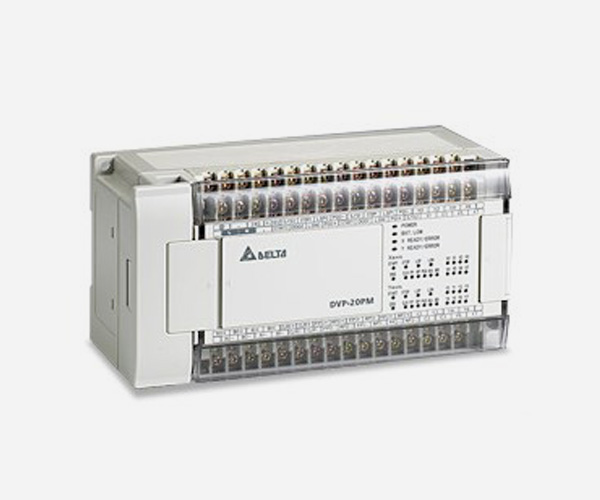

The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications.

Specifications

- MPU points: 16
- Max. I/O points: 512
- Program capacity: 64K Steps
- Communication port: Built-in RS-232 and RS-485, compatible with MODBUS ASCII / RTU communication protocol.
- Data register: 10,000 words (latched)
- 500KHz high-speed pulse output:
Built-in 2 groups of A/B phase differential signal ouput
X-axis pulse output: (FP0+, FP0-), (RP0+, RP0-)
Y-axis pulse output: (FP1+, FP1-), (RP1+, RP1-)
- Supports Manual Pulse Generator (MPG) and multi-point external signal inputs

Applications

Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.

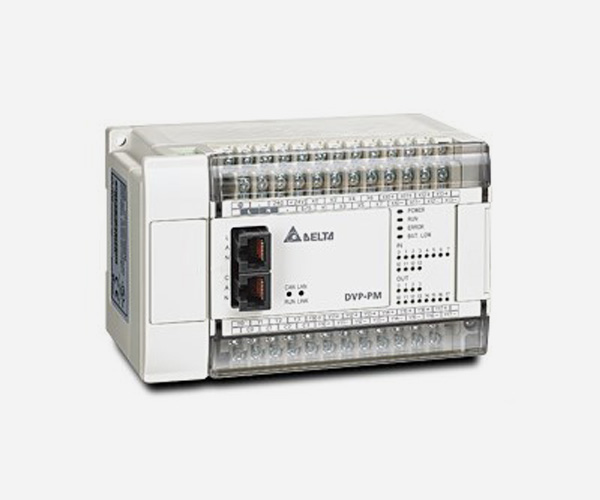

This series highlights high-speed command execution speed (basic command LD for 0.1375μs, application command MOV for 2.1μs and 1MHz differential output*4) to achieve precise motion control.

Specifications

- MPU points: 24
- Max. I/O points: 256
- Program capacity: 64k steps
- Built-in hardware digital filter for counting
- 6 high-speed counters (O.C. 200kHz*4, differential 200kHz*2), supporting U/D, U/D Dir, A/B, 4A/B counting modes
- 4 differential 1MHz outputs, supporting U/D, U/D Dir, A/B output modes
- Supports 1-speed (immediate stop after the mark arrives), 2-speed, zero return, MPG and single axis function
- Highly accurate PWM 200kHz output, resolution 0.3%
- Electronic gear function
- 8 high-speed captures (mark correction, frequency measurement), comparative output, mark/mask function (for bag making)
- 8 external interruptions for setting up rising- and falling-edge triggers, 1 timed interruption
- Highly efficient command execution. LD: 0.1375μs, MOV: 2.1μs

Applications

Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.

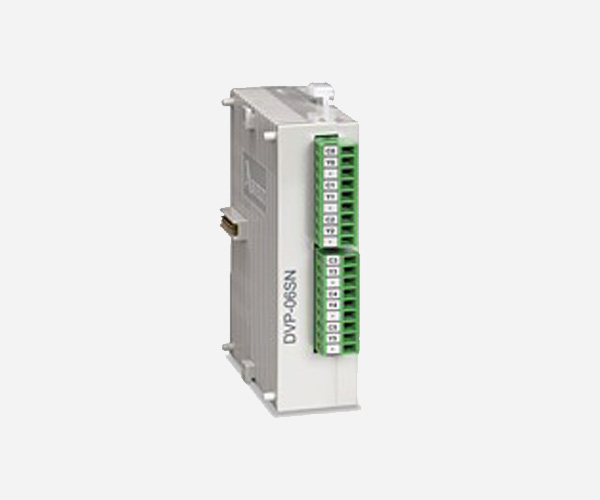

Specifications

- Digital modules (output/input/mix): 8 ,16 , 32, 64 I/O
- Analog modules (output/input/mix): 2 channel, 4 channel, 6 channel inputs (14-bit) / output (12-bit)
- Load cell modules: independent dual-channel high speed high accuracy load cell module with 24 bits resolution with 2.5ms response rate
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy+/-0.6%, resolution 16bits, RTD inputs: Pt100 / Pt1000 3850 PPM/°C (DIN 43760 JIS C1604-1989) / Ni100 / Ni1000 / LG-Ni1000 / Cu100 / Cu50, thermocouple inputs: J, K, R, S, T type
- Network modules: EtherNet, DeviceNet, PROFIBUS-DP, CANopen, RS-485, RS-422, BACnet MS/TP
- Remote I/O communication modules: DeviceNet, PROFIBUS, EtherNet, RS-485

Features & Benefits

Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement/control modules, load cell modules, network modules, remote I/O communication modules

Applications

Remote device monitoring, production line monitoring, building automation, printing machine, container filler (recipe application)

Specifications

- Digital modules (output/input/mix): 8,16, 32, 48 I/O
- Analog modules (output/input/mix): 4 channel, 6 channel inputs (14-bit) / output (12-bit)
- Temperature measurement modules: conversion time 200ms/channel, overall accuracy +/-0.6%, resolution RTD inputs: Pt100 / Pt1000 / Ni100 / Ni1000 3850 PPM/°C, thermocouple inputs:J, K, R, S, T, E, N type
- Network modules: DeviceNet, PROFIBUS-DP, CANopen

Features & Benefits

Digital modules (output/input/mix), analog modules (output/input/mix), temperature measurement modules, network modules

Applications

Remote device monitoring, production line monitoring, printing machine, container filler (recipe application)
