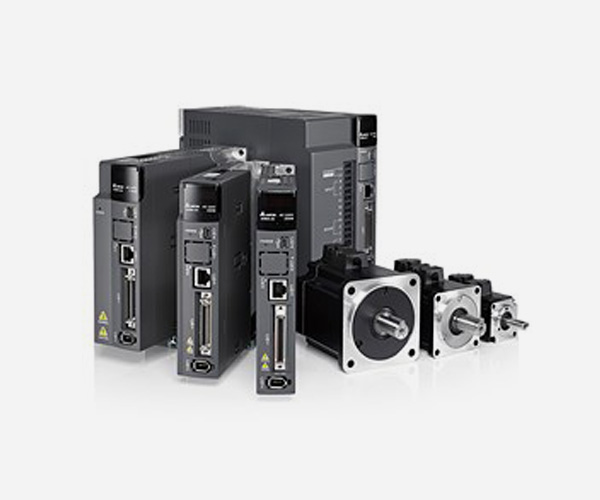

As the market of automated manufacturing rapidly develops, the need for servo products with higher performance, speed, precision, bandwidth, and functionality is widely increasing. To meet the requirements of the motion control market for industrial manufacturing machines, Delta presents a new High-end AC Servo System, the ASDA-A3 Series, with features such as multi-functionality, high-performance, energy-efficiency, and compact design.

With auto-tuning and a user-friendly interface for system analysis, the ASDA-A3 Series provides 3.1kHz of bandwidth and employs a 24-bit absolute type encoder, creating advantages that include high response, precise locating, and stable and flexible performance. In addition, the series has added new functions such as vibration suppression, system diagnosis, and a shared DC-bus design which can regenerate energy. Delta’s AC Servo System ASDA-A3 Series offers a comprehensive technology and solution to help our customers enhance their machine’s precision and achieve excellent performance.

Features & Benefits

3.1 kHz Bandwidth

- Higher responsiveness and shorter settling time increases productivity

24-bit Absolute Type Encoder

- 16,777,216 pulses/turns ensure precise positioning
- Steady performance at low-speed enhances machining quality
- Keeps motor's position during power shortage

Advanced Motion Control E-CAM & 99 sophisticated motion

- E-CAM & 99 sophisticated motion commands and segments allowed
- Graphical user interface offers simple setup and programming
- Arithmetic operation / comparison commands available
- General motion functions such as homing, position and speed commands
- Superimposition, blending, and jump change motion commands provided

Comprehensive Auto-Tuning Functions

- Built-in auto-tuning function lowers the barriers for users and optimizes machine performance with less tuning effort
- Provides step-by-step guidance wizard for easily tuning and setting up servos via panel keypad or software

Excellent Vibration Suppression
Advanced Notch Filter

- Provides 5 sets of notch filters with up to 5 kHz tunable bandwidth
- The filters can search resonance in a shorter time and set the attenuation level automatically, avoiding damage to machines

Low Frequency Vibration Suppression Function

- Suppresses vibration for machines with high flexibility, enhancing overall performance
- Adopts a creative algorithm to eliminate the shaking of machines without slowing down its response and speed

System Diagnosis Function

- Measures the rigidity and damping coefficient of a machine and checks the consistency of the machine's batch installation
- Acquires the wear condition of a machine by comparing data from different time spans

Multi-axis DC-bus Sharing Design

- Collects regenerative energy and stabilizes DC-bus voltage for energy savings
- Multiple servo drives with DC-bus sharing saves cost of resistors and installation space

Slim and Compact Size Servo Drives and Motors

- Drives and motors are 20% smaller and shorter than the ASDA-A2 Series, saving space

Intuitive Software Interface

- Tree-View index list and collapsible menu helps to access functions easily
- Graphical interface provides set up functions and parameters, reducing setting time and failure

Applications

Machine tool, precise carving machine, gantry processing, TFT LCD cutting machine, IC packaging machine, assembly / inspection machine for electronics, industrial robot, packaging machine, labeling machine, semiconductor machine, textile machine

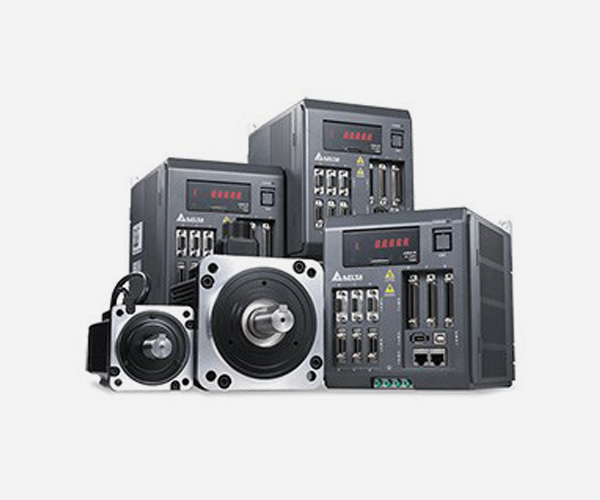

With its innovative and cutting-edge servo drive design, the ASDA-M series gives a new definition to servo system by achieving the perfect combination of motion controller and servo system. The development of the ASDA-M series follows in the footsteps of the successful ASDA-A2 series and offers high resolution, high frequency response, a built-in electronic cam (E-Cam), function of auto notch filter, vibration and resonance suppression, full-closed loop control, friction compensation and a more flexible position register control PR mode. The ASDA-M series also features many robust functions and an advanced design that meets a variety of applications for all types of industrial automation machines.

The ASDA-M series goes beyond the typical servo drive. It includes 3-axis servo drives in one frame to support real-time data exchange among three axes without any time delay and provides 3-axis synchronous motion control with performance better than comparable servo drives. Users can perform 3-axis linear/arc/helical interpolation functions easily. The ASDA-M series also features a new gantry control function for synchronous control that is precisely adapted to pure rigid mechanical systems. The ASDA-M series is your best choice for the highly integrated systems and the high-end machines requiring 3-axis synchronous control.

The ASDA-M series adopts a design that allows three axes to sufficiently share PN power with output power and regenerated power. Less power loss can be achieved through DC bus voltage changes without additional communication links. Compared to general servo systems this 3-in-1 design also reduces the input from the grid with effective energy saving, benefits/cost reduction and reliability enhancement.

In addition, connecting to DMCNET, CANopen and RS-485 communication enables the system to integrate with various extension digital input and output modules and other automation more efficiently. The ASDA-M series has surpassed the traditional servo system structure and provides a new concept for a real-time and reliable motion control network that satisfies the market requirements of industrial automation for a changing world.

Features & Benefits

- Multi-axis synchronous interpolation
- Advanced gantry control
- Flexible electronic cam (E-Cam) function
- Excellent vibration and resonance suppression for different mechanical applications
- Full-closed loop control (Accuracy of positioning guaranteed)
- Versatile PR mode for various and multiple continuous motion movements

Applications

High-end machines requiring 3-axis synchronous control / Adhesive dispensing / Gluing machines/ Winding machines / Multi-axis Cartesian robot arms / Gantry control system

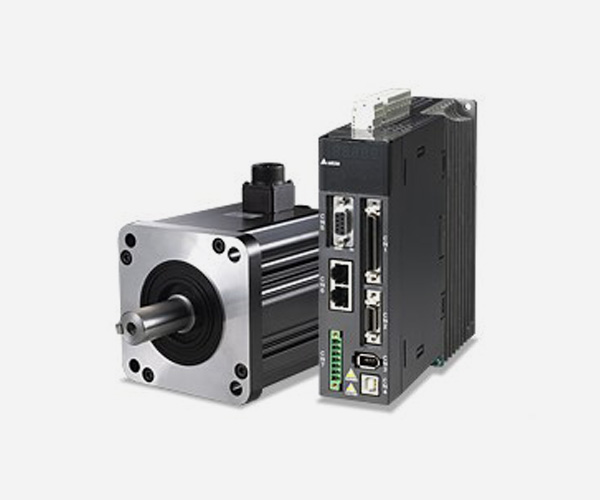

To meet the demanding requirements of motion control applications in industrial automation and satisfy the needs of high-precision positioning control requested by machine designers and system integrators, Delta launched the high-performance motion control ASDA-A2 series servo motors and servo drives in 2009.

Specifications

There are five models of ASDA-A2 series: ASDA-A2-L, ASDA-A2-M, ASDA-A2-F, ASDA-A2-U, ASDA-A2-E

High Precision Control

- ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.
- Up to 1kHz frequency response. Settling time below 1ms.

Superlative Vibration Suppression

- Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.
- Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.

Flexible Internal Position Mode (Pr Mode)

- ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.
- 64 internal position settings are offered for continuous motion control.
- Destination position, speed and acceleration & deceleration commands could be changed in the middle of operation.
- 35 kinds of homing modes are available.

Unique Built-in Electronic Cam (E-CAM)

- Up to 720 E-CAM points.
- Smooth interpolation between points can be completed automatically to yield a flexible programming.
- ASDA-A2-Soft configuration software provides electronic cam (E-CAM) profile editing function.
- Applicable for rotary cutoff and flying shear applications.

Full Closed-loop Control (Capable of reading second feedback signals)

- Built-in position feedback interface (CN5) is able to read second feedback signals from motor encoder and send the current position back to the drive to form a full closed-loop so that high accuracy position control can be accomplished.
- Reduce the effects of mechanical imperfections such as backlash and flexibility to ensure the position precision at machine edges.

Features of ASDA-A2-M

- CANbus communication speed is 1M bps, in comply with CANopen DS301 standard.
- 3 CANmotion modes (Profile Position Mode, Interpolation Position Mode, Homing Mode) are provided for CANopen DS402 standard. Max. length of the communication cable can reach up to 40m (when using standard communication cable).
- Station configuration can be set via parameter settings.
- In conjunction with Delta’s PLC, it is able to save the wiring and establish Delta fieldbus system configuration.

Features of ASDA-A2-U

- Max. 14 digital inputs.
- Using powerful “Pr mode” is able to perform complex motions.
- Quick connector is available for easy installation and use.
- Built-in DC 24V power supply is provided to simplify the wiring and save space.

Features of ASDA-A2-E

- Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.
- Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d
- Wide power range coverage in both 220V and 400V
- Supports full-closed loop control
- Supports absolute type and incremental type ECMA Series servo motors

Applications

Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printing

In the ever-changing global market, industries transform and grow. The key to success is responding to the market with fast, precise, and continuous innovative customization and solutions for our customers. To achieve our goals and keep pace with the evolving market, Delta officially launched its new linear drive system, the ASDA-A2R series for high speed and high accuracy motion control applications.

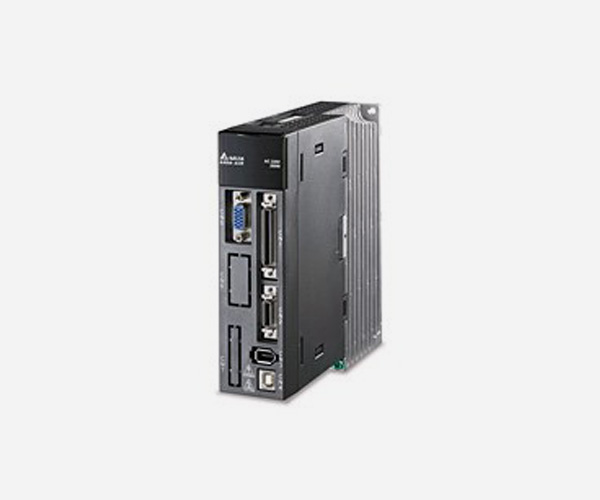

The ASDA-A2R series is an innovative linear drive system that has successfully integrated CANopen and DMCNET communication interfaces to offer high response and high precision control. Connecting to Delta's motion control cards and programmable automation controller (PAC) MH1-S30D, Delta's linear drive system can provide an ideal solution for multi-axis motion control applications in various automated industries.

For Delta's ECML-S16/20/25/32 series ironless linear motors, the ASDA-A2R series is able to perform the characteristics of high precision, high rigidity, high response and backlash free to optimal levels. This not only increases the work efficiency of the motion control system, but also expands the applications of the servo system to satisfy demanding high precision requirements.

Current linear drive systems in the market are a complex system that includes servo drive, linear motor, linear scale and external controller while components come from different suppliers. The customer would need to apply great effort to integration. The ASDA-A2R series combines Delta's linear motors with Delta's PAC to establish a simpler system featuring simple wiring, quick installation, fast communication, superior performance and less integration effort.

When the ASDA-A2R series is connected to an optional ASD-IF-EN0A20 Signal Converter Box through a motor encoder interface, the square waves and sine waves of feedback signals from the linear scale, linear motor and encoder can be converted to communication signals into the ASDA-A2R series. The ASD-IF-EN0A20 converter box can divide the signals into high resolution signals (Signal amplification: a multiple of 2,048) to greatly reduce noise and distortion and provide more accurate signal transmission that is essential for fast and optimum communications.

Good stability, high reliability and excellent performance are the features of Delta's ASDA-A2R series linear motion drive.

Features & Benefits

- Power Range: 100 W ~ 3 kW
- Intelligent motor parameter measuring, easy and fast tuning
- Accurate positioning and initiation without a Hall sensor unit
- High flexibility in connecting various kinds of linear motors and servo motors
- Signal Converter Box (optional) is available for high speed and high precision requirements
   - Supports AB phase square waves of digital signals and sine waves of analog signals
   - Signals can be divided up to a multiple of 2,048 to increase positioning resolution for precise position control
- Detection and compensation of motor cogging force

Applications

Exposure Machines, Drilling Machines, Electric Discharge Machines (EDM), Linear Cutting Machines, Semiconductor Industry, Touch Panel Manufacturing, TFT-LCD Industry, Screen Printing Machine

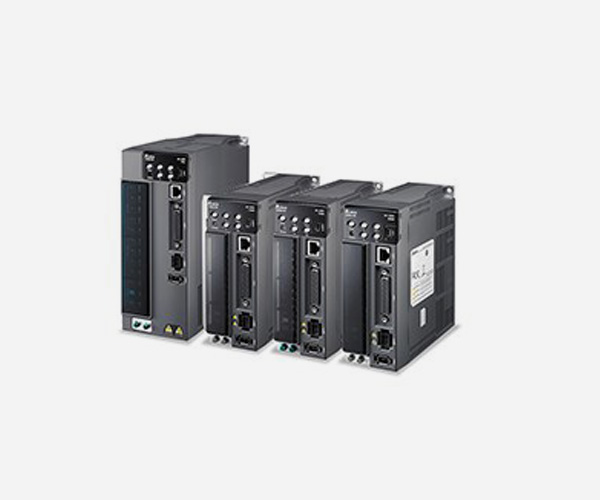

The Standard Delta Servo System ASDA-B3 Series features high tolerance, stable operation and high precision motion control functions. It creates a highly efficient, user-friendly operation environment for equipment and optimizes production efficiency and output value.

Offering the best motion control solutions, Delta is boosting industry momentum and working with customers to create an innovative future.

Features & Benefits

- High responsiveness shortens settling time by 40% compared with previous models
- All motors support 24-bit absolute encoders
- Multiple high-speed communication bus for options
- Built-in PID control
- Advanced gain adjustment function, system analysis interface, vibration suppression, and system modeling functions
- Energy regeneration function

Applications

Machine tools, electronics, semiconductors, industrial robots, printing, packaging, textiles, warehousing, medical

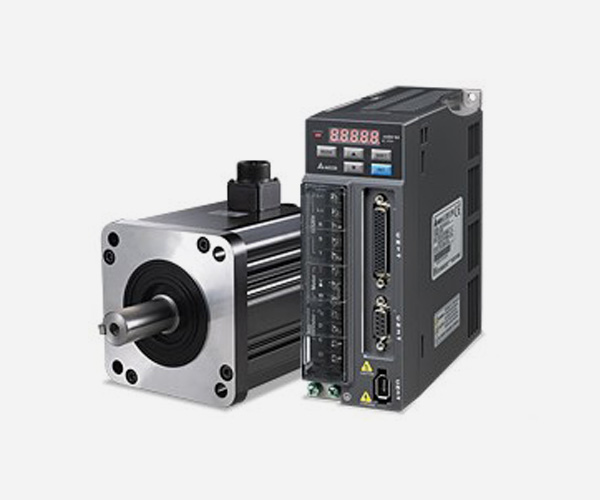

To meet the requirements of general-purpose machine tools and enhance the competitive advantage in the industrial automation market, Delta Electronics, Inc. is pleased to announce that the new high-performance and cost-effective ASDA-B2 series servo motors and drives has launched into the market.

Specifications

Satisfy High Precision Positioning Requirements

- Support pulse input (up to 4Mbps) and analog voltage two kinds of command.
- Built-in position, speed and torque three control modes (speed and torque mode could be controlled via internal parameters or analog voltage command).
- There auto notch filters are provided to suppress the mechanical resonance automatically and make the system operate more smoothly.

Offer Easy-To-Install Solution for Simple Start-Up

- Motor sizing software is offered for the customers to conduct the estimation of the equipment conveniently.
- ASDA-Soft configuration software (tuning software) is provided for the customers to meet the performance requirements quickly.
- Easy-to-use digital keypad is ideal for setting parameters and monitoring the servo drive and motor directly.
- Servo motor provides brake, oil seal etc. optional configurations for the requirements of different applications.

Reduce Maintenance and Wiring Cost for Versatile Operation

- Existing power cables and encoder cables for ASDA series could be used still. When upgrading, there is no need to purchase new accessories.
- The control circuit and main power circuit is separated, safety is increased and maintenance is much easier.
- 400W and above servo drive is built-in with regenerative resistor, significantly save the wiring and cost.
- Two analog input terminals (CN5) are provided, easily monitor and the status of the servo motor.

Applications

Transportation Machine, Cuttign Machine, Lathe and Milling Machine

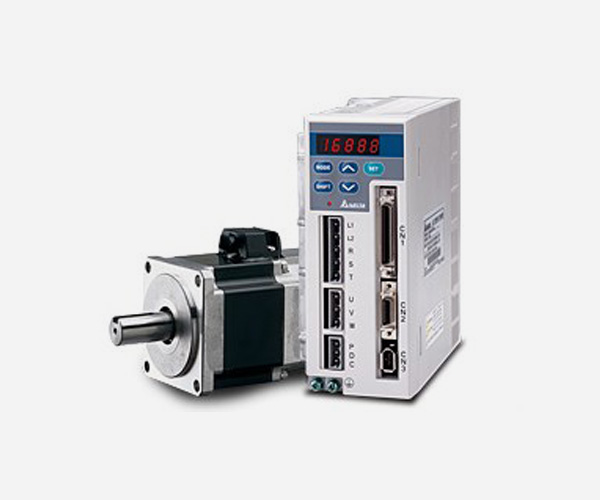

The A series is an omnibearing integrated servo system with advanced functions. Not only pulse commands and analog voltage signal control, the A series also provides internal point-to-point position control mode (8 internal programmable registers) and offers various internal control functions such as: indexing, feed step control function, internal auto-running control mode, and move to Home function, etc. for a vast range of applications. In addition, the A series implements Modbus communication protocol as a standard, to perfectly meet the requirements of motion control applications for multiple points. The A series servo system provides a better solution for industrial processing machinery and motion control equipment.

Specifications

- A wide power range: from 100W to 1.5kW, 1-phase or 3-phase; from 2kW to 3kW, 3-phase
- Input power supply: AC 200V ~ 230V
- Built-in Position / Speed / Torque control modes
- 8 internal programmable registers (point-to-point position control)
- Internal control function: Indexing, Feed step control function (for cutting applications)
- Internal control function: Internal auto-running control mode
- Internal control function: Move to Home (Homing) function
- Internal control function: Position teaching function (JOG mode)
- Programming is done via the built-in keypad or using Delta's free Windows® based software where the user can store, teach, and monitor the operation of the servo system.
- Modbus communication protocol is supported as standard. Communication Interface: RS-232 / RS-485 / RS-422

Applications

Cutting control of machining center, rotary indexing machine, sealing machine, shearing machine, feeding machine, carving machine, lathe, high-speed winding machine, testing / inspecting Machine, cutting machine, SMT machine, molding machine

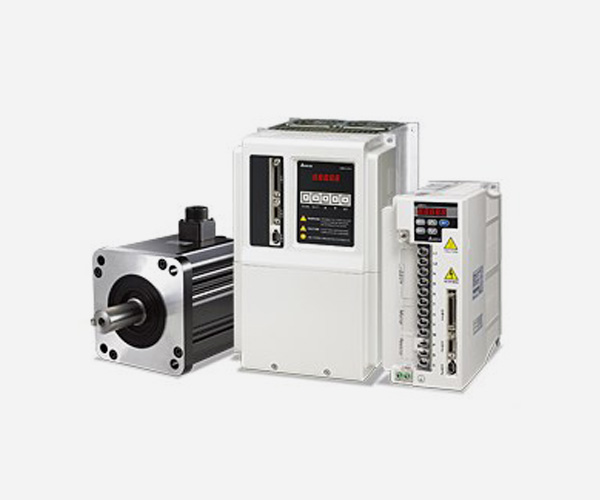

The A+ series is a new type of omnibearing integrated servo system with advanced functions. It is able to combine with medium / high servo motors from 3kW to 7.5kW ( torque output from 19.1 N-M to 47.74 N-M) and is equipped with incremental 20-bit (1280000 ppr) optical encoder, providing more accurate positioning control for high-precision processing industries or the machine applications where high responsiveness and stiffness is needed to reject high torque disturbances. With A and AB series, Delta provide a complete servo product line (from 100W to 7.5kW) to fully support our customers' needs and offer various options for high torque applications.

Specifications

- A wide power range: from 4.5kW to 7.5kW, 3-phase
- Input power supply: AC 200V ~ 230V
- Frequency characteristics (Responsiveness): 550Hz
- Incremental 20-bit (1280000 ppr) optical encoder
- Medium / High inertia servo motors are available including: 3kW, 3.5kW, 4.5kW, 5.5kW, 7.5kW.
- Max. input frequency: Line receiver 4Mbps for high-speed motion command.
- Built-in Position / Speed / Torque control modes
- 8 internal programmable registers (point-to-point position control)
- Various internal control functions for a vast range of applications (as A and AB series)
- Modbus communication protocol is supported as standard. Communication Interface: RS-232 / RS-485 / RS-422

Applications

Spring machine, bending machine, bending press, feeding machines, electric injection molding machine, double column type machining center, presses machine

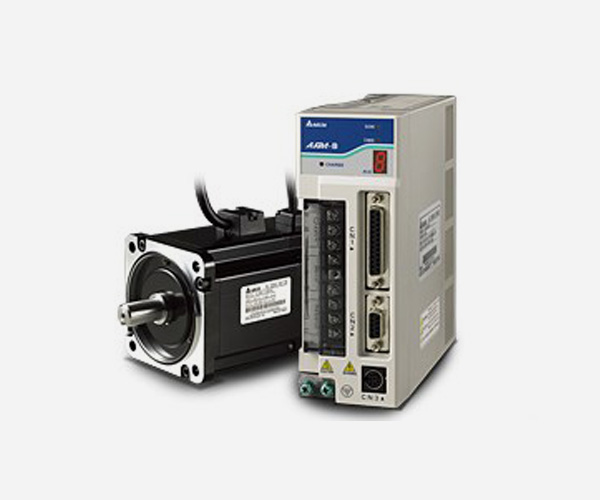

The B series is a digital servo system with standard functions. It provides built-in Position / Speed / Torque control modes and supports pulse command input and analog signal control. Parameters editing and operation is done via an optional handheld digital keypad. The gain tuning function allows easy operation and the internal memory blocks shorten the parameters upload and download time. The B series is a cost-effective and satisfactory servo system that fills the most basic and functional requirements of industrial automation field.

Specifications

- A wide power range: from 100W to 1.5kW, 1-phase or 3-phase; 2kW, 3-phase
- Input power supply: AC 200V ~ 230V
- Available motor capacity: from 100W to 2kW
- Built-in Position / Speed / Torque control modes
- Pulse commands and analog voltage signals are accessed via input / output interface - CN1.
- D-sub connector is provided for no troublesome wiring and connection.
- Convenient handheld digital keypad is helpful for parameters editing and operation.
- Internal memory blocks stored in the handheld digital keypad allows the users to read and write the parameters of the servo drive.
- Easy gain tuning is done via the handheld digital keypad or using Delta's free Windows® based software where the user can store, teach, and monitor the operation of the servo system.
- Modbus communication protocol is supported as standard. Communication Interface: RS-232 / RS-485

Applications

Filling and bottling equipment, feeding machine, electro-discharge machine, lathe, printing equipment, crochet machine, carving machine

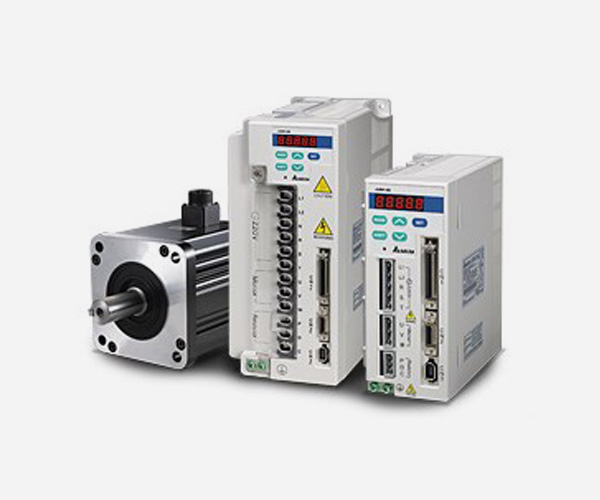

The AB series is a high performance digital servo system with advanced functions and supports various motor options including low, medium and high inertia servo motors to meet different application needs. It offers many motion control functionalities for a wide range of industry and machine applications, as well as provided in the A series. In addition, the AB series implements Modbus communication protocol as a standard, to connect with Delta's programmable logic controller (PLC) and human machine interface (HMI), and establish the advanced architecture of the communication control system. Major applications include a vast range of machine tools and processing machines for various industries.

Specifications

- A wide power range: from 100W to 1.5kW, 1-phase or 3-phase; from 2kW to 3kW, 3-phase
- Input power supply: from 100W to 400W, AC 100V ~ 115V; from 100W to 3kW, AC 200V ~ 230V
- Frequency characteristics (Responsiveness): 450Hz
- Incremental 2500ppr optical encoder
- Built-in Position / Speed / Torque control modes
- 8 internal programmable registers (point-to-point position control)
- Various internal control functions for a vast range of applications (as A series)
- Different inertia motors, from 1000 r/min to 3000 r/min are connectable.
- Brake, oil seal, etc. motor options are available for different kinds of application fileds.
- Modbus communication protocol is supported as standard. Communication Interface: RS-232 / RS-485 / RS-422

Applications

Cutter/Turret control of machine tool, X-Y table control, sealing machine, feeding machine, carving machine, lathe, high-speed winding machine, cutting applications, textile equipment.
